Stiebel Eltron DHC-E Plus Series
Electric Point-of-Use Tankless Water Heaters
Let us help you evaluate if tankless is right for you or help you select the best model for your application. Call us now...
Stiebel Eltron
DHC-E Plus Series Advantages:
• save space
• save energy
• direct coil technology
• thermostatic temp control
• flow-based power control
• reduce water waste
• simple installation
• very economical
• legendary Stiebel quality
Stiebel Eltron DHC-E Plus Tankless Brochure
Adobe PDF Format
Stiebel Eltron DHC-E Plus Tankless Installation Guide
Adobe PDF Format
Stiebel Eltron DHC-E Plus Series
tankless water heaters are independently tested to comply with US and Canadian safety standards
Stiebel Eltron Tankless Water Heaters are tested and certified by WQA against NSF/ANSI 372 for "lead free" compliance.
Stiebel Eltron is
Quality you can count on!
Manufactured in Germany

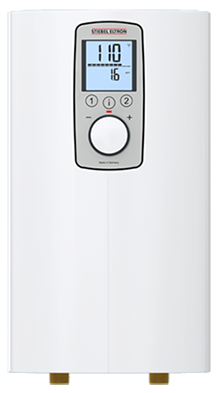

The Stiebel Eltron DHC-E Plus series tankless water heaters are the most technologically advanced point-of-use tankless water heaters available today. The DHC-E 8/10-2 Plus and DHC-E 12/15-2 Plus combine Stiebel Eltron's direct coil heating technology with the industry-leading thermostatic temperature control as well as flow and temperature based power modulation technology found in Stiebel Eltron's flagship Tempra whole house heaters. Simply set your desired temperature between 86° (30°C), and 140° (60°C) and enjoy water at the temperature you requested. Change your desired temperature at anytime with ease. Advanced microprocessor technology ensures that the water temperature never deviates from your desired temperature.
The DHC-E Plus Series are extremely energy efficient as they produce hot water on demand, only as it is required. A sophisticated water flow sensor recognizes when hot water is turned on and when it has been turned off, so the unit will activate and deactivate automatically. This ensures it will only run when you are actually requesting hot water. You can expect to see a significant cost reduction over the operating cost of a conventional water heater, as this eliminates standby thermal heat losses associated with traditional tank type water heaters.
| Maximum Flow Rate in Gallons Per Minute at 105F Output Temperature | ||
|---|---|---|
| Incoming Water Temp |
DHC-E 8/10-2 Plus | DHC-E 12/15-2 Plus |
| 40F | 0.75 / 1.00 GPM | 1.3 / 1.5 GPM |
| 45F | 0.82 / 1.09 GPM | 1.4 / 1.6 GPM |
| 50F | 0.89 / 1.19 GPM | 1.5 / 1.8 GPM |
| 55F | 0.98 / 1.31 GPM | 1.6 / 2.0 GPM |
| 60F | 1.09 / 1.45 GPM | 1.8 / 2.2 GPM |
| 65F | 1.22 / 1.63 GPM | 2.0 / 2.4 GPM |
| 70F | 1.40 / 1.87 GPM | 2.3 / 2.8 GPM |
| 75F | 1.63 / 2.18 GPM | 2.7 / 3.3 GPM |
the Brochure for temp rise data at 208v input.

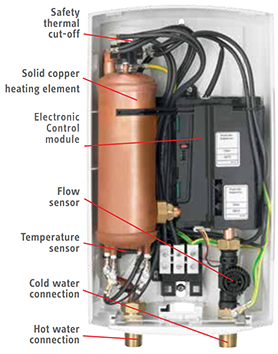

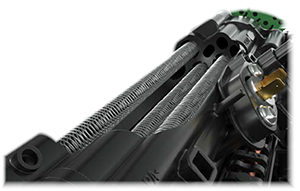

DHC-E Plus Series electric tankless water heaters incorporate Stiebel Eltron's Direct Coil™ heating system. Stiebel Eltron's most advanced technology, their Direct Coil™ has proven worldwide to be exceptionally low-failure with outstanding added benefits.
The robust and trouble-free Direct Coil™ heating system is self-cleaning for superior limescale resistance, and includes the added benefits of faster heat-up time, lower latent heat retention, and more.
DHC-E Plus Series point-of-use tankless water heaters are ideal for bathroom sinks, kitchens, commercial washrooms, and a wide range of other point of use applications. Due to their small size, they conveniently fit directly under the sink or adjacent cupboard or closet, so they deliver hot water to the sink almost instantly. By locating the heater right near the point-of-use, you can also eliminate thermal heat loss commonly associated with long pipe runs. In new construction applications, you also eliminate the need to run a hot water line all the way from the main central water heater which can save you significant money in plumbing and material cost.
* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Please consult your electrician for more details.
| Stiebel Eltron DHC-E Plus Series Tankless Water Heater Models & Specifications | |||
|---|---|---|---|
| Stiebel Eltron DHC-E 8/10-2 Plus |
Stiebel Eltron DHC-E 12/15-2 Plus |
||
| Thermostatic Control? | Yes, temperature control and full power modulation based on flow rate and incoming water temperature. | ||
| KW | 9.6 or 7.2 KW @ 240v / 7.2 or 5.4 KW @ 208v | 14.4 or 12 KW @ 240v / 10.8 or 9 KW @ 208v | |
| Voltage: | 208 - 240 volts / single phase / 50 - 60 Hz | ||
| Max. Amps: | 40 or 34.6 AMPS @ 240v / 30 or 26 AMPS @ 208v | 60 or 52 AMPS @ 240v / 50 or 43.3 AMPS @ 208v | |
| Breakers Required:* | 1 x 40 AMP breaker @ 240V or 1 x 35 amp breaker at 208V (depends on local codes) |
1 x 60 AMP breaker @ 240V or 1 x 60 amp breaker at 208V (depends on local codes) |
|
| Wiring:* | Minimum #8 AWG Copper (depends on local codes) |
Minimum #6 AWG Copper (depends on local codes) |
|
| Dimensions: | 14.33 x 8 x 4.31" (36 x 20 x 11 cm) | ||
| Weight: | 5.5 lbs (2.5 KG) | ||
| Pipe Fittings: | 1/2" NPT | ||
| Energy Efficiency: | 99%+ | ||
| Activation Flow Rate: | 0.264 GPM / 1.0 LPM | ||
| Max. Water Pressure: | 145 psi | ||
| Warranty: | Manufacturer's 3 Year Warranty | ||
| Safety: | ETL Listed (US / Canada) | ||
| Protection: | microprocessor-based thermostatic temperature control (flow rate and temperature modulating) with thermal hi-limit cut-out switch | ||
| Price Lowest Price Guaranteed! |
US$329.00 + Free Shipping |
US$359.00 + Free Shipping |
|
 DHC-E 8/10-2 Plus |
DHC-E 12/15-2 Plus |
||
