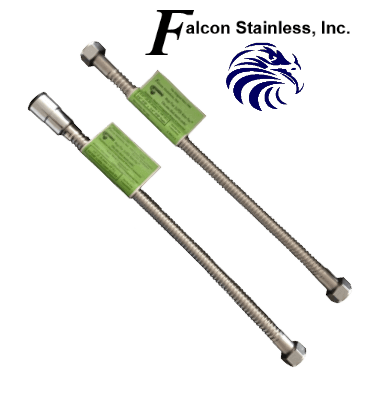

Falcon Flexible / Corrugated Stainless Steel Connectors for Water Heaters
|
ease of installation saves time and money - excellent for tankless water heaters!
Falcon's flexible corrugated stainless steel water heater connectors offer a number of advantages over conventional hard plumbing and other types of flexible connectors:
- ease of installation saves significant time and labor costs
- 304 stainless steel - will not discolor, rust or corrode
- 134% more flow than standard braided connectors (17% more than flexible copper connectors and 31% more than other corrugated stainless steel flex)
- can be quickly and easily disconnected for servicing, maintenance or seasonal removal
- re-useable and re-bendable
- minimal deformity in curvature - will hold bend without kinking or crimping
- increased seismic safety - connectors will flex rather than break during an earthquake
- no dielectric union required
- burst pressure rated up to 2200 psi (working pressure 200 psi)
- high Temp EPDM Washer (-40° to 220 °F)
- 100% Leak Tested
The following Falcon corrugated stainless steel connectors are recommended for use with Stiebel Eltron Tempra and Tempra Plus Series electric tankless water heaters:
| Recommended Falcon connectors for Stiebel Eltron Tempra and Tempra Plus Series Electric Tankless Water Heaters | |||||||
|---|---|---|---|---|---|---|---|
| Model # | Material | Inside Diameter | Fittings | Length | Price Each |
Price 2 Pack |
|
 |
FF-18 | Flexible, Corrugated, 304 Stainless Steel |
3/4" | 3/4" FNPT x 3/4" FNPT |
18 inches (45.7cm) |
||
 |
PTC34JG-18 | Flexible, Corrugated, 304 Stainless Steel |
3/4" | 3/4" John Guest Quick Connect* x 3/4" FNPT |
18 inches (45.7cm) |
||
* John Guest quick-connect syle fittings are designed to work with standard 3/4 inch PEX and 3/4 copper water lines. Simply push the pipe into the fitting to create a water-tight seal! John Guest fittings can be removed by depressing the collar to unlock the fitting if ever required in the future. Simplicity, convenience, and the fastest installation time!
Falcon stainless steel connectors comply with the following plumbing / safety standards:
- ICC-ES PMG
- ASME A112.18.6
- CSA B125.6-2009
- NSF/ANSI Standard 61
(ICC-ES PMG Certified to ANSI/NSF section 9) - UPC, IPC, IMC, IRC (USA)
- ICC Listed, Tested & Certified
- Low Lead Compliant AB 1953
- California H&S Code 116875
- State of Wisconsin
- Commonwealth of Massachusetts
- L.A. City
- South Texas
|
|
|
